I search in the commands out of the block I choose the block and I obtain this with Y position: %<\AcObjProp Object(%<\_ObjId 2502722928>%).InsertionPoint \f "%lu6%pt2">% With \_ObjId 2502722928 is the instance of the block but each time the instance is different. How to change this with a...

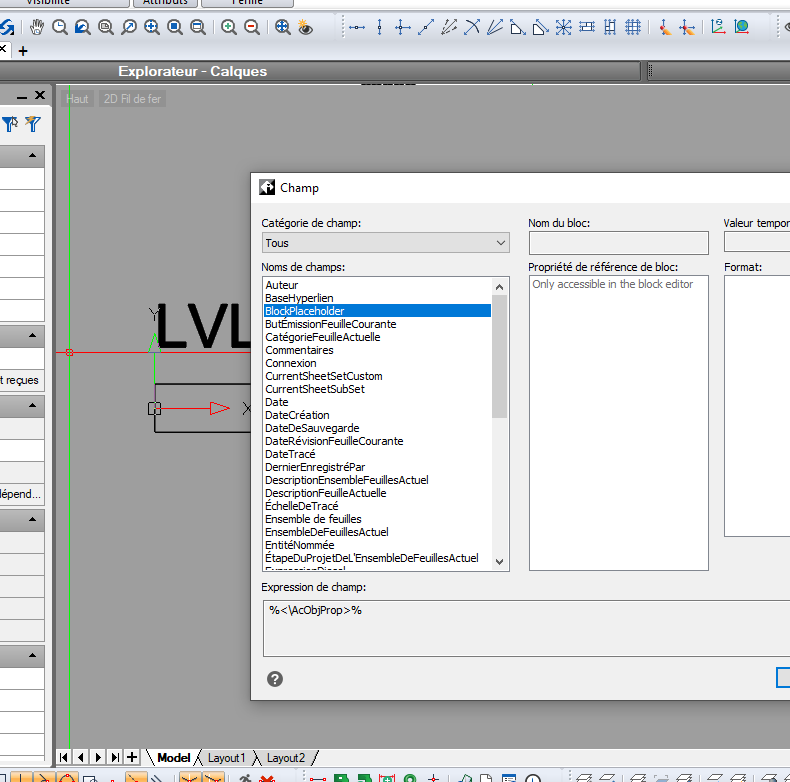

I am in block editor but why I don't connect to the BlockPlaceHolder please?
I want to create this block dynamic : https://www.youtube.com/watch?v=BEz24YfwVAM

This is the key:I have opened a number of the RCS files, then thought.... put the RCP file into the House folder....It worked.. :) Yes, sometimes everything gets stuck and you wonder why for a long time... I know that well! But since my question about Point Clouds we are a little more aware of how ...

But Steve, It's easy. Place the Stewart_House RCP.zip in a documents folder. unzip it You obtain : Stewart_House Support folder + Stewart_House.rcp file Place this Stewart_House.rcp file in the Stewart_House Support folder Open IntelliCAD create a new file and save it near your . Stewart_House Suppo...

Where you want it's not important. I archiv it in my 3D Objects folder in "3DPointCloud" directory.
But you can unzip it near your IntelliCAD file. Attach a Point Cloud is the same as Import an image.

sln8458 wrote: ↑

Wed Jul 09, 2025 2:00 am

Pat,
Which support folder did you use?
I'm unable to see the loaded file, as you in post #1

Below the title of the video. Download the file and unzip it please.

I can use point cloud file but there are no tools to make cut or section in IntelliCAD now.....Sniff! EDIT: Sorry! section plan from 3D rubban work ! Very good! coupe_hz.jpg I choosen the orthographic cut with Top option and because the zero Z was on 2.2 meter/ground high I obtain this section ! I c...

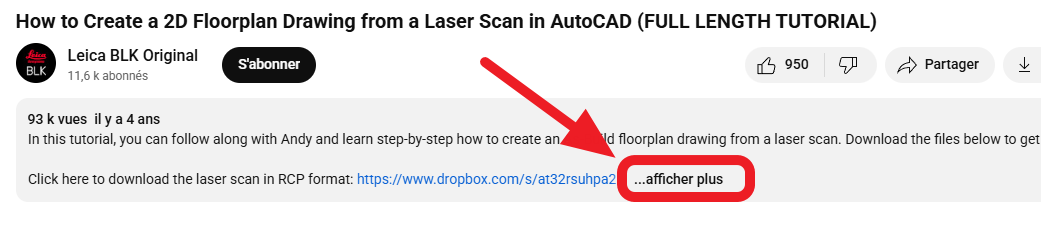

Is there a sample point cloud with Icad 13.1? Steve look at the info menu of the video there are a dropbox download link ! image_2025-07-09_090718644.png BUT when you have unzipped the .rcp, place the Stewart_House.rcp file in the support folder. Then open IntelliCAD and Insert/attach the Stewart_H...

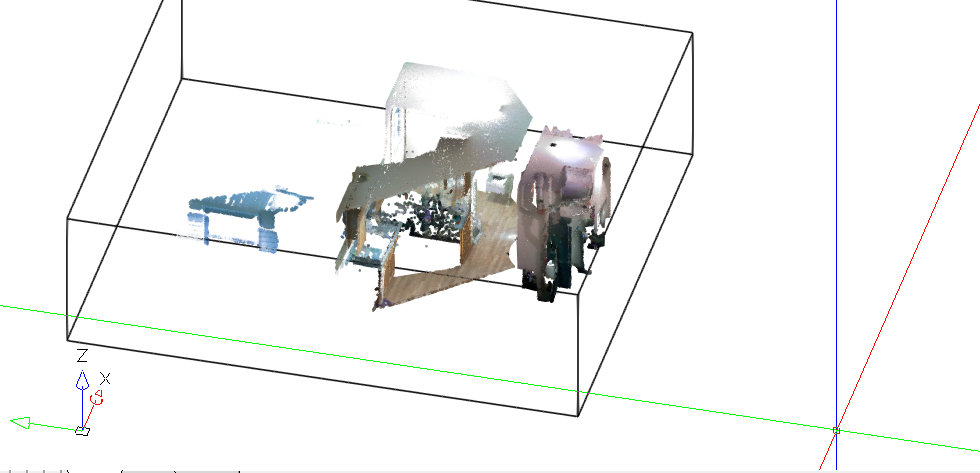

As far as we can track, there's no rcp file at the points cloud file sample. We've run a quick test and we can import .rcp files as underlays. With the video there are one .rpc file with a support folder with .rps files I understood to place the .rpc file in the support folder and now that's work! ...

Ah yes thks Quan, indeed with .rcs that's work!

UGMENTALCASE You don't understand my tread : I created a new command to IntelliCAD that exist in Autocad.
This addon is to trandform a line or multiline or circle or arc in construct line. not infinite line..

I test the new Icad feature to draw plans with point cloud (house.rcp) with this tutorial :
https://www.youtube.com/watch?v=0EBUIs9bJps
But when I import/attach this points cloud I don't see the cloud even with my Nvidia Asus GTX1080TI in Realistic style. Why please?

Quan I found that code : (if (tblsearch "ltype" "DASHED2") ;Vérifiez si le type de ligne DASHED2 est chargé (progn (command "CHPROP" ent "" "_layer" "CLINE" "_LT" "DASHED2" "") ) (progn (command "-linetype...

Ha yes you're right Quan I forgotten... I thought that "DASHED2" was by default in IntelliCAD....
(tblsearch table-name symbol [setnext])
At soon...

Yes Quand I will try it....At soon Thks for your nice help. EDIT: Nickel/Chrome Quan! your prog work very good ! I added the two function in the same lisp file and added two buttons to hide/display objets Here is the file now: https://1drv.ms/u/c/3e78343d1605325e/ETt3ZyrmskxHqt47SP53JNkB0UedCaH_rfGd...
