Hi guys, I wanted to share a few findings with the community that I think everyone will find useful: 1. The " ROTATE3D " function is not working. 2. Dynamic Input does not work for the Z-axis . This is a big one, as I initially thought something was wrong with IntelliCAD itself. However, t...

OK, fair enough.

Hi guys, I’ve been using the software for a long time and I really rely on it, but I have a huge request for the devs regarding the visual side of things. The new interface in v.14 looks great, but honestly, paying 370 € just to get a modern look is too much, especially since some technical issues l...

Just do REGEN and the objects will come back

Hi Alexandra, You may need to create 2 separate dimension styles. One for Horizintal numbers and one for Vertical numbers. So you can control how they are displayed. YES, this is the only option so far. Therefore, I have to call for Developers again, to solve this issue. As long as we keep collabor...

Hi, QuanNguyen!
Thank you so much for your response...

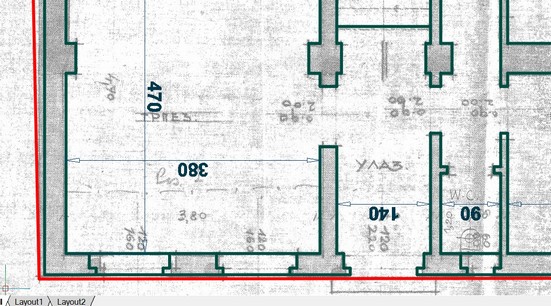

I did try this, but then, I also get all horizontal dimensions upside down! Do you possibly know how to avoid this?
Many regards,
Alex

Hi, guys! Does anyone know how to rotate vertical dimension text 180 degrees in the Dimensions Style Manager? I tried all combinations: to flip the text, to change the view direction, but nothing works. There must be some "catch 22". I’m familiar with adjusting it in the Properties Dialog ...

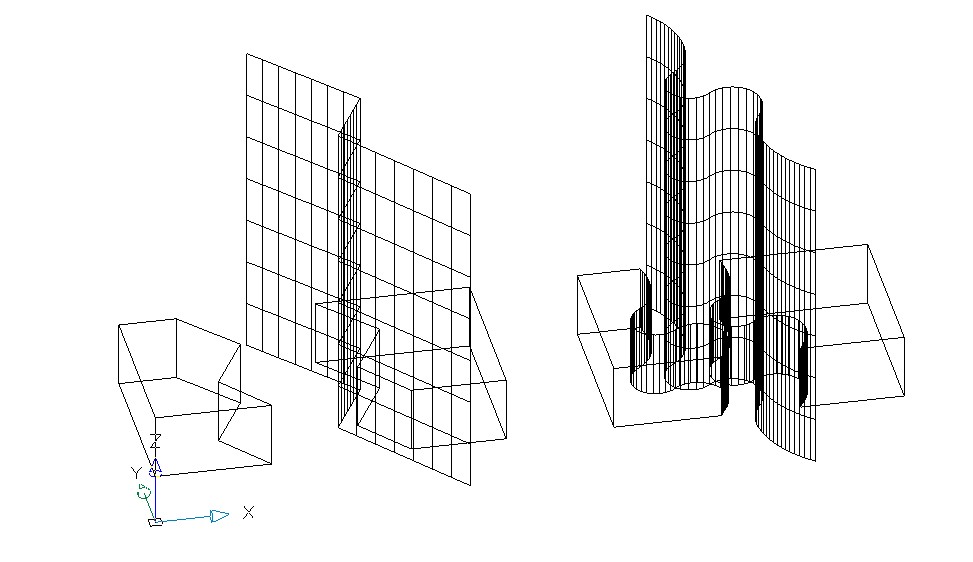

Hello everybody! Let me just remind you that developers fixed the SLICE command, which is a great news for us architects, but ROTATE3D is still not working. This is a kind reminder to Developers to address this issue as well. (Even though there is a workaround with ALIGN command, it is still not the...

Thank you Developers!
I tried SLICE command and now it works!
THANK YOU!!!

I fount this command here:
https://www.intellicadms.com/download/f ... 3d-editing
At 09:35...

I think it should be precise, but I will have to check a bit more (through practice)...

So, we will just wait for developers to fix this bug.
I simply can not work without this command.

Hi Patrick... "When I use firts 3Drotation I select the green plane and then the axe of rotation with 2 points " Try to click the axis in following manner: Each of two points that define axis click two times . This way you "say" to the Software "keep these two points on axis...

Hi Patrick! You are an angel! How did you manage to slice with SUBTRACT command? I tried to make a SURFACE (with Extrude-Mode-Solid) command and than SUBTRACT, but it did not work. I also tried with SURFACE (Extrude-Mode-Surface) command and than SUBTRACT, but it also did not work. If I make two sol...

It is command ALIGN. It works both in 2D and 3D. - Please, Aleksandra could you explain how you use this ALIGN function because I use the Align button here: - 2025-02-04 20 21 06.png In fact in your video you don't make a rotation, just a slip, no? Hi Patrick! I use CAD software as of '90s, so I TY...

TRIM tool has been refactored in v13.x . Users can now trim objects directly, without needing to pre-select the cutting edges or boundary objects. The original TRIM behavior is still available by setting the mode to "Standard": Type TRIM command > mOde > Standard Thank you for notifying u...
